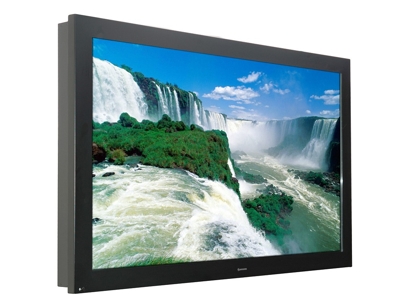

AT-MDP26 Digital Signage
AT-MDP26 Digital Signage
Features :

26" Panel PC with optional Touchscreen

Digital Signage for any network

Modular System for Mini ITX

High-Tech solution: Barebone or complete Panel PC with several optional functions to meet customers demands like IP65, Sunlight solution, SAW Touchscreen, PID control or vandalism protection

Description
Construction : metal, colour black
Display Size : 26"
Panel Resolution : 1366 x 768, 16:9
Display Color : 16.7M
Brightness : 450cd/m²
Contrast Ratio : 2500 : 1
Pixel Pitch : 0.4215
Viewing Angle : -88° ~ +88° L/R, -88° ~+88° U/D
OSD control : YES
VGA connector : VGA + DVI-D
Touch Screen Optional : optional SAW Touchscreen
Backlight MTBF : 50.000
Power Supply : included, Panel + PC power
Temperatur Range Operating : 0° - 50 °C
Temperatur Range Storage : -20 °C - +60 °C
Humidity : 10 - 90%
Mainboard : optional Mini-ITX
CPU : optional ATOM or Core2Duo
Memory : optional
Chipset : optional INTEL® 945 GME + ICH7-M DH or 965 INTEL® Next Gen
Front Panel Protection : optional
HDD : optional
CF Socket Optional : optional
Fanless : YES
LAN : INTEL® 82567LM GbE LAN , INTEL® 82574L GbE LAN
Serial : optional 2 or 5 x RS232
USB : optional 4 x rear & 4 x internal
Audio : optional 5.1 Channel HD Audio with 6W Amplifier
LVDS : optional1 x
Other Features : Expansion slots: 1 PCI , optional 1 x Mini-PCIe , 1 x PCIe


Additional Information
1 MB
Packaging Information Carton Width : 782 mm
Carton Height : 568 mm
Carton Depth : 244 mm
Width : 662 mm
Height : 408 mm
Depth : 124 mm
20ft Container : 110 pcs
40ft Container : 240 pcs
Carton : 1 pcs
