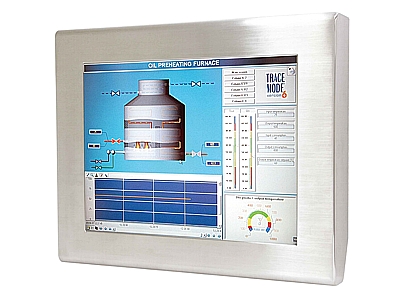

APC-3582  Industrial Panel PC
APC-3582 Industrial Panel PC
Features :

Low Power Consumption 5 Sides IP65.

15" Industrial Panel PC, Resistive touch or GFG touch option.

Intel Atom D525 CPU support.

Fanless Design.

IP65 except I/O side.

Wide range DC 11~32V.


APC-3582  Industrial Panel PC
Description
Construction : Satinless steel with aluminum heat-sink
Display Size : 15" TFT-LCD
Panel Resolution : 1024 x 768
Display Color : 262K
Brightness : 400 cd/m²
Contrast Ratio : 800:1
Viewing Angle : H:160° / V:145°
Backlight MTBF : 50.000
Mounting : VESA 75 x 75 Mount
Power Supply : 11~32V DC
Temperatur Range Operating : 0~50 °C
Temperatur Range Storage : -20~60°C
Humidity : 10~90% @40 °C non-condensing
CPU : ntel Atom Processor D525 (1M Cache, 1.8 GHz)
Memory : 1 x DDR3 SO-DIMM slot, up to 4GB 800MHz
Chipset : Intel ICH8M
Front Panel Protection : IP rating 5 Sides IP65, I/O side IP42 with waterproof kit
HDD : 1 x 2.5" SATA2
CF Socket Optional : 1 x Internal CF slot, 1 x External CF slot
Fanless : Yes
LAN : 2 x GbE RJ-45
Serial : 1 x RS-232 DB9 1 x RS-232/422/485 selectable default RS-485
USB : 4 x USB 2.0 type A
KB/MS : None
Audio : None
Bus Expansion : None
Other Features : 5 Sides IP65, I/O side IP42 with waterproof kit
Touch Screen : Yes
Type : GFG or Resistive option
Light Transmission : 80%
Controller Interface : Resistive (optional) USB Interface
Power Consumption : Max:30W@12V
Driver OS support : Microsoft Windows 7 pro for embedded, Windows embedded stand


Additional Information
3 MB
Packaging Information Width : 399 mm
Height : 324 mm
Depth : 67 mm
Net Weight : 7.5 kgs
