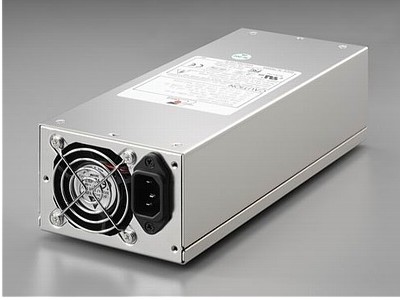

P2G-5600V ZIPPY EMACS 2U
Features :
‧TEMPERATURE RANGE: OPERATING 0°C- 50°C, STORAGE –20°C - 80°C‧HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
‧EFFICIENCY: 80~84% TYPICAL AT 115V, FULL LOAD
‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
‧OVER POWER PROTECTION
‧OVER VOLTAGE PROTECTION
‧OVER CURRENT PROTECTOIN
‧SHORT CIRCUIT PROTECTION
‧EMI: FCC CLASS B, CISPR22 CLASS B
‧SAFETY: TO MEET UL, CUL, TÜV, CCC
‧3.3V / 5V / 12V REMOTE SENSING
‧COOLING: ONE 60mm DC FAN
‧MEET IEC-1000-3-2 CLASS D
|
|
Description
Color : metal
Output Wattage : 600W
Input Voltage : 90 ~ 264 VAC FULL RANGE
Frequency : 47 ~ 63 HZ
Input Current : 9.0A ( RMS ) FOR 115VAC, 4.0A ( RMS ) FOR 230 VAC
Inrush Current : 25A MAX. FOR 115 VAC, 50A MAX. FOR 230 VAC
PFC : PFC CAN REACH THE TARGET
Efficiency : 80~84% TYPICAL AT 115V, FULL LOAD
CoolingFan : 40mm
+3v3V : 25A
+5V : 25A
+12V1 : 46A
-12V : 0.8A
+5Vsb : 3.5A
|
Over Voltage Protection : yes
Over Current Protection : yes
Short Circuit Protection : yes
Built In EMI filter : ‧EMI: FCC CLASS B, CISPR22 CLASS B
Hold-up Time : 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
Temperatur Range Operating : 0° - 50° C
Temperatur Range Storage : –20° - 80°C
Other Features : SAFETY: TO MEET UL, CUL, TÃœV, CCC
|
|
|
|
|
|
|
