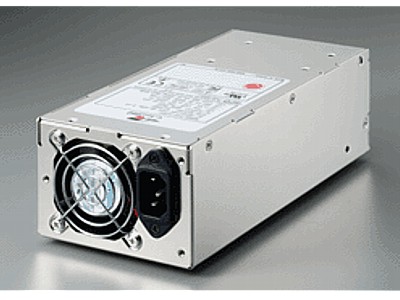

P2H-5500V ZIPPY EMACS 2U
Features :
EFFICIENCY：83% TYPICAL AT 115VAC , FULL LOAD
* POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS
* OVER POWER PROTECTION：110～160% MAX
* OVER VOLTAGE PROTECTION：+5V→5.6V～6.6V +3.3V→3.6V～4.3V +12V→13.2V～15V
* SHORT CIRCUIT PROTECTION：+5V��?+12V��?+3.3V
* EMI NOISE FILTER : FCC CLASS A, CISPR22 CLASS A
* SAFETY : TO MEET UL, CUL, TUV
* REMOTE ON/OFF CONTROL THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE， AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE.
* 3.3V & 5V REMOTE SENSING
|
|
Description
Color : metal
Output Wattage : 500W
Input Voltage : 90～264VAC FULL RANGE
Frequency : 47～63HZ
Input Current : 6A (RMS) FOR 115 VAC/
Inrush Current : 40A MAX. FOR 115 VAC/
Efficiency : EFFICIENCY：83% TYPICAL AT 115VAC , FULL LOAD
CoolingFan : 60mm
+3v3V : 25A
+5V : 25A
+12V1 : 40A
-12V : 0,8A
+5Vsb : 3,5
|
Over Voltage Protection : yes
Over Current Protection : yes
Short Circuit Protection : yes
Temperatur Range Operating : OPERATING 0℃～40℃
Other Features : TO MEET UL, CUL, TUV
|
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
780501 | P2H-5500V | 500W ATX | 2U Single |
|
|
|
|
|
|
|
