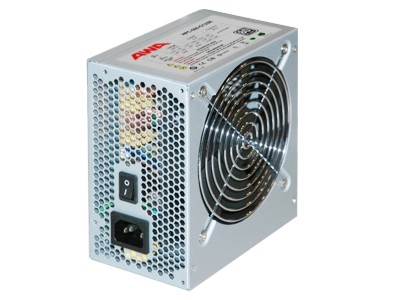

HPC-500-GS12SE AWA
Features :
* 500 watts wattage rated switching power supply
* Low heat & Low noise operation with silent 120mm
* Energy-efficient: typical 84.10%, average 81.94% efficiency
|
|
Description
Construction : metal
Color : metal
Intel Form Factor : ATX
Input Voltage : 230V
Frequency : 50Hz
PFC : Active PFC
Efficiency : 81.9-84.1%
+3.3V : 24A
+5V : 20A
+12V1 : 20A
+12V2 : 20A
-12V : 0.3A
+5Vsb : 2.5A
Dual +12V Output : yes
Motherboard Connector : 24pin
|
CPU Connector : 4pin 12V
Connector S-ATA : 3x
4Pin For Peripheral : 3x
4Pin for Floppy : 1x
6Pin For PCI-E VGA : 1x
Over Voltage Protection : YES
Over Current Protection : YES
Short Circuit Protection : YES
Temperatur Range Operating : 10°C - 45°C
Temperatur Range Storage : 20 to 90%
Other Features : Safety & Regulatory Approval from UL, cUL, FCC, CE, CB
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
700481 | HPC-500GS12SE AWA ATX | PS/2 | APFC | 12cm fan
|
|
|
|
|
|
|
